RanksBlock

When to use

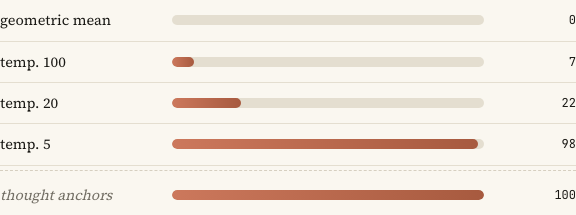

When comparing a few named items (e.g. ablation masks) on a single scalar metric, and the visual ordering matters. Each row renders a bar whose width encodes a fraction in [0, 1]. Sanity-check rows can be visually distinguished.

Example

import RanksBlock from '../../components/widgets/RanksBlock.astro';

<RanksBlock rows={[
  { mask: "full model", value: "0.93", fraction: 0.93, bold: true },
  { mask: "no layer 5", value: "0.71", fraction: 0.71 },
  { mask: "no layer 9", value: "0.42", fraction: 0.42 },
  { mask: "random ablate", value: "0.05", fraction: 0.05, sanity: true },
]} />

Props

Prop	Type	Required	Notes
rows	Row[]	yes	One bar per row.

Row shape:

Field	Type	Required	Notes
mask	string	yes	Left-aligned row label.
value	string	yes	Right-aligned printed value (any units).
fraction	number	yes	Bar width as a fraction in [0, 1]. Clamped.
bold	boolean	no	Renders the value cell bold (e.g. the “main” row).
sanity	boolean	no	Adds a sanity class for downweighted styling.

When not to use

• For categorical comparisons without a magnitude. Use PairList.
• For more than ~8 rows. Use a horizontal bar chart figure.
• For values that aren’t naturally on [0, 1] (clamping will mislead readers).
